Introduction
Imagine a world without computers, smartphones, or even simple remote controls. It might be hard to picture, but before the invention of transistors, electronics were bulky, slow, and unreliable, reliability is still a question but is far better the impact of physical environment has reduced to great extent. Transistors revolutionized technology, allowing us to build faster, smaller, and more efficient devices.
From amplifying sound in radios to processing billions of calculations in a computer chip, transistors play an essential role in modern electronics. But what exactly are they, and why do they matter? Let’s dive in and explore.
Check Our Calculators Here
What is a Transistor?
A transistor is a small semiconductor device that controls the flow of electrical current. It acts as a switch (turning current on and off) or an amplifier (boosting weak signals).
Before transistors, electronic circuits relied on bulky vacuum tubes, which consumed more power and generated heat. In 1947, John Bardeen, William Shockley, and Walter Brattain invented the first transistor, researchers at popular Bell Labs marking a new era in electronics, and received Noble Prize in 1956 for this invention.
Fun Fact:
Modern microprocessors contain billions of transistors! For example, Apple’s M2 chip has around 20 billion transistors, enabling ultra-fast computing.

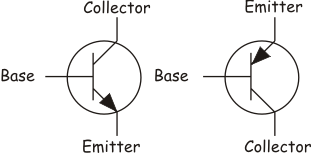

The Basic Structure of a Transistor
A transistor is made from semiconductor materials like Silicon or Germanium and consists of three main parts:
- Emitter (E) – Releases charge carriers (electrons or holes).
- Base (B) – Controls the amount of current flowing through the transistor.
- Collector (C) – Collects the charge carriers.
A simple way to understand this is by comparing it to a faucet:
- The Emitter is like the water source.
- The Base is the valve that controls how much water flows.
- The Collector is where the water flows out.
👉 Types of Transistors:
There are two main types:
- Bipolar Junction Transistor (BJT) – Uses small current to control a larger current.
- Field Effect Transistor (FET) – Uses voltage instead of current to control flow.
What Is Electronics: Interactive Presentation
How Do Transistors Work?
Transistors as Switches
One of the most important applications of transistors is in digital electronics. Computers process data using binary code (1s and 0s), where a transistor in the ON state = 1, and OFF state = 0.
Example:
A simple LED circuit can demonstrate how a transistor works as a switch:
- When a small current flows into the Base, the transistor allows a larger current to pass from Collector to Emitter, turning the LED ON.
- When the Base current stops, the transistor turns OFF, and the LED goes out.
Circuit Description
The simulation demonstrates how PNP and NPN transistors function as switches to control LEDs. The circuit consists of:
- Two CR2032 (3V) coin cell batteries (one for each transistor circuit).
- A PNP transistor (Left Circuit) and an NPN transistor (Right Circuit).
- Two push buttons to control the base current.
- Two LEDs (one in each circuit) to indicate switching behavior.
- Resistors to limit current flow.
Simulation Output and Analysis
Expected Behaviour from the Simulation:
- Left Circuit (PNP Transistor): When the button is pressed, the left LED turns ON, as the transistor properly switches due to a controlled base current.
- Right Circuit (NPN Transistor): The right LED fails to turn ON because there is no base resistor to regulate current flow, preventing the transistor from switching correctly.
Why the Right LED Stays OFF?
- In a properly functioning NPN circuit, a base resistor is needed to limit the current entering the base and ensure the transistor operates in the saturation region.
- Without a resistor, the base current is unregulated, causing insufficient activation of the transistor, leading to no LED illumination.
- Just scroll to right in the simulation the corrected circuit is placed there.
Transistors as Amplifiers
Transistors are also used in audio systems, radio signals, and communication devices to amplify weak signals.
Example:
- In a microphone circuit, the transistor boosts weak sound signals, allowing them to be heard more clearly through a speaker.
I will explain transistors as amplifiers in detail in upcoming blogs.
Why Are Transistors Important?
Transistors have changed the way we live. Here’s why they matter:
✅ Miniaturization of Electronics
Transistors replaced large vacuum tubes, making electronics smaller, faster, and more energy-efficient.
✅ Powering Modern Technology
They are the building blocks of microprocessors, memory chips, and all computing devices.
✅ Revolutionizing Communication
Without transistors, we wouldn’t have radios, televisions, mobile phones, or the internet.
✅ Applications in Medicine
Transistors are used in hearing aids, pacemakers, and medical imaging devices, improving healthcare.
Real-World Examples of Transistors in Action
Wondering where transistors are used? Here are a few places:
- 📱 Smartphones & Computers → CPUs contain billions of transistors for processing data.
- ⚡ Power Electronics → Found in solar panels, electric vehicles, and power grids.
- 🎧 Audio & Communication Devices → Used in amplifiers, radios, and wireless networks.
- 🏠 Home Appliances → Remote controls, TVs, and smart home devices.
The Future of Transistors
As technology advances, transistors continue to evolve.
👉 Moore’s Law & Miniaturization
Moore’s Law states that the number of transistors on a chip doubles every two years. However, we are now reaching the physical limits of how small transistors can be.
👉 Quantum Transistors
Scientists are exploring quantum computing, where transistors can operate at atomic levels, opening the door to ultra-fast processing.
👉 Flexible & Organic Transistors
Future transistors may be bendable and transparent, enabling wearable electronics and smart fabrics.
Conclusion
Transistors are the heart of modern electronics, enabling everything from smartphones to space exploration. They have transformed the world, making technology more powerful, efficient, and accessible.
As transistors continue to shrink and improve, they will shape the future of computing, AI, and even medical technology. Understanding transistors means understanding the foundation of modern innovation!
🔹 Want to learn more? Try building a simple transistor circuit or explore simulations online to see them in action! 🚀
